COUNTERSINK GAGE 沉頭孔量測器
產品說明

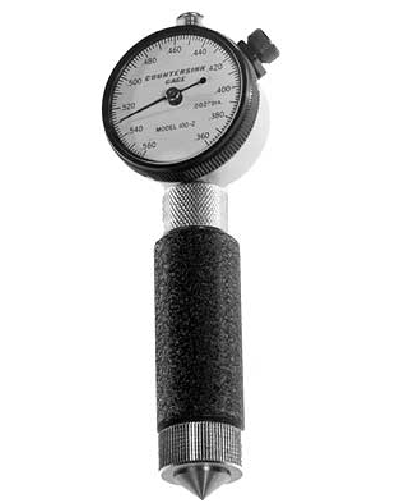

BARCOR COUNTERSINK GAGE是專為測量頂部埋頭孔直徑而設計的精密儀器。只需將彈簧加載的精確角度柱塞壓入埋頭孔，然後直接讀取量表刻度.002“或05mm就是直徑。
COUNTERSINK GAGE是一款直讀式內徑規。該量具可在車間中為您提供快速，準確且直接讀取。幾乎萬無一失，即使是沒有經驗的人也可以使用COUNTERSINK GAGE並獲得可靠的結果。
COUNTERSINK GAGE是一款直讀式內徑規。該量具可在車間中為您提供快速，準確且直接讀取。幾乎萬無一失，即使是沒有經驗的人也可以使用COUNTERSINK GAGE並獲得可靠的結果。
 |
|
| GUARANTEED ACCURACY: ± .0005" or ± .015mm |
| MODEL | C'SINK ANGLE | CAPACITY |
| 30-0 | 30° | .020" to .170" |
| 30-1 | 30° | .160" to .360" |
| 30-2 | 30° | .360" to .560" |
| 30-3 | 30° | .560" to .780" |
| 30-4 | 30° | .780" to .980" |
| 30-5 | 30° | .980" to 1.180" |
| 60-0 | 60° | .020" to .170" |
| 60-1 | 60° | .160" to .360" |
| 60-2 | 60° | .360" to .560" |
| 60-3 | 60° | .560" to .780" |
| 60-4 | 60° | .780" to .980" |
| 60-5 | 60° | .980" to 1.180" |
| 82-0 | 82° | .020" to .170" |
| 82-1 | 82° | .160" to .360" |
| 82-2 | 82° | .360" to .560" |
| 82-3 | 82° | .560" to .780" |
| 82-4 | 82° | .780" to .980" |
| 82-5 | 82° | .980" to 1.180" |
| 90-0 | 90° | .020" to .170" |
| 90-1 | 90° | .160" to .360" |
| 90-2 | 90° | .360" to .560" |
| 90-3 | 90° | .560" to .780" |
| 90-4 | 90° | .780" to .980" |
| 90-5 | 90° | .980" to 1.180" |
| 100-0 | 100° | .020" to .170" |
| 100-1 | 100° | .160" to .360" |
| 100-2 | 100° | .360" to .560" |
| 100-3 | 100° | .560" to .780" |
| 100-4 | 100° | .780" to .980" |
| 100-5 | 100° | .980" to 1.180" |
| 110-0 | 110° | .020" to 170" |
| 110-1 | 110° | .160" to .360" |
| 110-2 | 110° | .360" to .560" |
| 110-3 | 110° | .560" to .780" |
| 110-4 | 110° | .780" to .980" |
| 110-5 | 110° | .980" to 1.180" |
| 120-0 | 120° | .020" to .170" |
| 120-1 | 120° | .160" to .360" |
| 120-2 | 120° | .360" to .560" |
| 120-3 | 120° | .560" to .780" |
| 120-4 | 120° | .780" to .980" |
| 120-5 | 120° | .980" to 1.180" |
